T04E T3/T4 .63 Turbo Turbocharger Compressor 350HP Internal Wastegate 2.5" VBand
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Model: T3/T4 Turbocharger Kit
Performance T3/T4 Turbo Kit w/ Vband + Gaskets & Hardware
Materials: Cast Iron Steel Turbo Housing Aluminum Controller
Exhaust (Downpipe) Flange: Standard T3 T4 4-Bolt
Exhaust (Turbo Manifold) Flange: Standard 2.50" Inner Diameter V-Band
Hybrid T04E T3/T4 .63 Turbo Turbocharger Compressor 350HP w/ Internal Wastegate 2.5" Exhaust VBand
Fitment Guide:
T3/T4 Hybrid Turbocharger is designed to be used on engines displacing 1.6L-2.5L and is typically good for around 400HP. They are also commonly used in twin turbo applications.
In this case those figures would be doubled 3.2L-5.0L engines up to 800HP. Horsepower ratings are generally meant to express the turbochargers maximum airflow capability
T3/T4 Hybrid Turbochargers are created by installing a T4 compressor wheel and housing onto a T3 turbine housing, wheel & center section.
T3/T4 hybrid turbocharger assembly is designed for engines where a T3 turbocharger is too small to reach the desired maximum horsepower but using a T4 turbocharger would create too much turbo lag.
Package Contents:

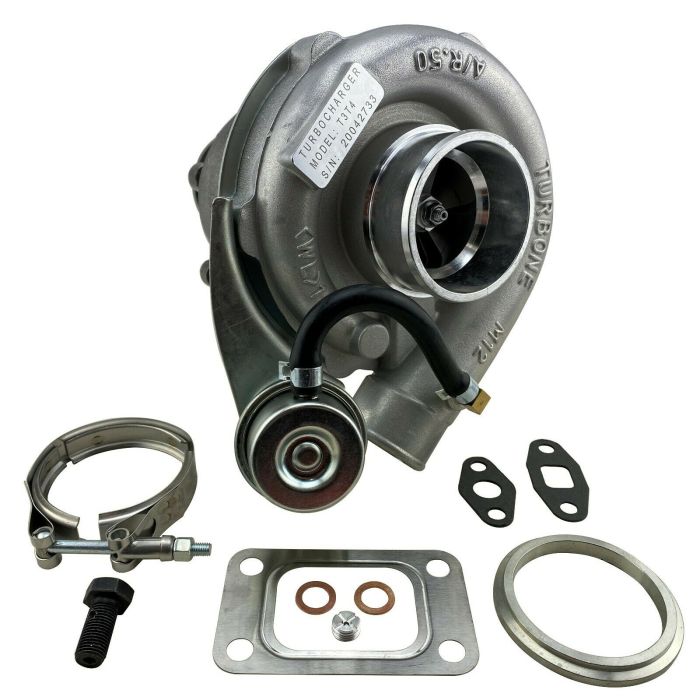

(1) Hybrid T3/T4 Hi FLow Turbocharger Kit
(1) Installation Kit: Gaskets / Bolts / Washers / 2.5" Vband + Ring
Specs:
4 Bolt Exhaust Flange
Capable of 8 PSI or 15-25 PSI output at peak power
Internal Wastegate setting: 8 PSI
Compressor:
3" Inlet
50.55 Inducer
57 Trim
Turbine:
T3 Type Turbine Flange
.63 A/R
65.2 Inducer
56.06 Exducer
Recommended boost pressures are 7psi (.5 Bar) to 21psi (1.5 Bar)
Boost pressures should not exceed 30psi (2 Bar)
Professional installation is highly recommended (No Instruction Included)
This is a universal application turbo, so modification would be required for some vehicles
Cross Reference Part Numbers:NP-T3T4TC, T3/T4, T3 T4
