GT3582 GT35 Turbo Charger T3 AR.70/63 Anti-Surge Compressor Turbocharger Bearing
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Type:Turbo Charger Kit
Flange (Turbo Exhaust):T3 Flange | Flange (Downpipe):4-Bolt
Turbine Inducer/Exducer:68mm/62.4mm | Turbine A/R:0.63
Other Part Number:GT3582, GT3582R, GT35
Interchange Part Number:GT3582; GT3582R; GT35, Universal Turbocharger Kit, Vband Clamps, Flange, Gaskets, Bolts
GT35 GT3582 Turbo Charger Kit w/ Gaskets / Bolts & 3" V-band Flange Clamp T3 AR.70/63 Anti-Surge Compressor Turbocharger
Fitment Guide:
Compressor Size:
Inlet(Air Intake): 4"(103.5mm)
Outlet: 2.5"(64.7mm)
Trim: 56
Inducer Diameter: 61.5mm
Exducer Diameter: 81.5mm
A/R: 0.70
Turbine Size:
Exhaust (Turbo Manifold) Flange: T3 4-Bolt Flange
Exhaust (Downpipe) Flange: 4-Bolt Flange
Trim: 84
Inducer Diameter: 68mm
Exducer Diameter: 62.4mm
A/R: 0.63
Cooling Type: Water and Oil Cooled
Oil Thread Size: W14x1.5
Water Thread Size: W8x1.25
Dimensions (Length x Width x Height)：230x180x240mm
Horse Power: Boost Horse Power up to 600BHP
Bearing Type: Journal Bearing
(Universal Fitment for Turbo Manifold with T3 flange)

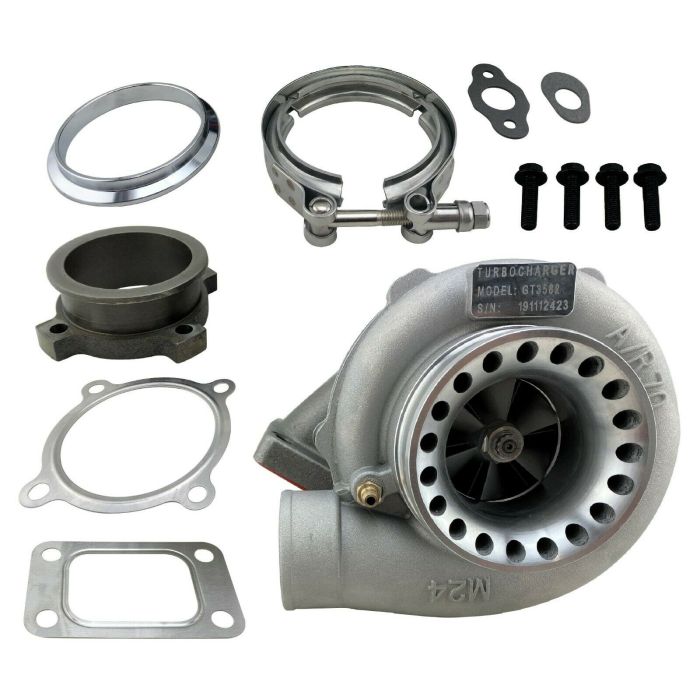

Package Contents:
(1) GT3582 Performance Hi Flow 600HP Turbo Charger
(1) V-Band Clamp Flange Kit
(1) Turbocharger Outlet 3" VBand Adapter
(1) Gaskets / Hardware - Fastener Bolts
Cross Reference Part Numbers:
NP-GT35TC, GT3582, GT3582R, GT35
