6+6 Turbocharger Billet Compressor Wheel FOR 2008-2016 Lancer Evolution EVO 10 X
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Brand: NPBoosted
Performance Billet Turbocharger Compressor Wheel Kit
Other Part Number: 4B11 2.0L MIVEC Turbocharged Engine
Interchange Part Number:
49378 01643, 49378 01641, 2.0L, 2.0, 2L Turbo, Turbocharger, Turbocharged, EVO 10 X, CZ4A, 4B11, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 08, 09, 10, 11, 12, 13, 14, 15, 16, 400HP+ Turbo CHRA Core Cartridge Rebuild, LANCER EVOLUTION X MR EVO EVOX 10 2.0L 4B11, Fits: Mitsubishi EVO X 10, TD05H-152G6, TD05HA-152G6, MFSD638C, 49378-01640, 49378-01641, 49378-01642, 49378-01643, 49378-01646, 49378-08011, 4937808011, 4937801640, 4937801641, 4937801642, 4937801643, 4937801646, 49178-43200, 4917843200, 6+6 Billet Turbocharger upgrade Kit
6+6 Turbo Billet Compressor Wheel Upgrade FOR 2008-2016 Mitsubishi Lancer EVO Evolution 10 X TD05H 152G6 47/68mm Fits OE Size Turbocharger Housing
Fitment Guide:
4B11 2.0L MIVEC Turbocharged
2008-2016 Mitsubishi Lancer Evolution 10 EVO X / CZ4A
Fitment Specifications:
All Turbo 2.0L EVO X Models - MR, GSR
JDM, USDM, CDM, European
Package Contents:

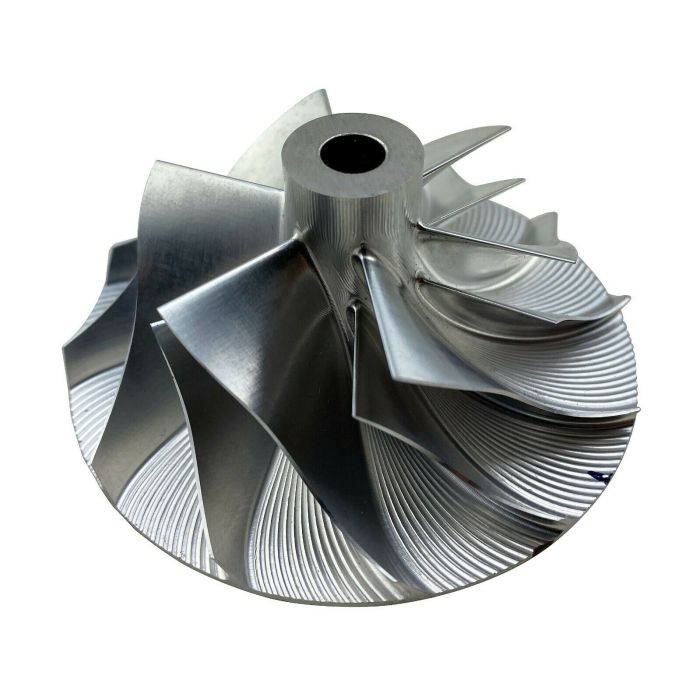

(1) 6+6 Billet HiFLow Compressor Wheel OE Upgrade
Specs:
Billet Wheel Spec
- Nose Dia. : 14.22 mm
- Inducer Dia. : 47.05 mm
- Exducer Dia. : 68.01 mm
- Extend Tapered Tip Exducer Dia. : No Extend Tip
- Tip Height : 4.69 mm
- Super Back Height: 2.90 mm
- Overall Height : 31.50 mm
- Bore Size : 6.50 mm
- Standard or customs size : Standard size
- Blade : 6+6
- Trailing angle : 60 Degree
- Bore Type : Through
- Fits OE Comp Housing : Fit OE Comp Housing
- Cutback : 0.0
- Rotation : Forward
Material
- Forged Aluminum
Cross Reference Part Numbers:
TD05H-152G6, TD05HA-152G6, MFSD638C, 49378-01640, 49378-01641, 49378-01642, 49378-01643, 49378-01646, 49378-08011, 4937808011, 4937801640, 4937801641, 4937801642, 4937801643, 4937801646, 49178-43200, 4917843200
