Turbo Turbine Wheel Shaft Kit for 3519336 H1C WH1C HX35 HX35W Ind 70mm Exd 60mm
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Brand: NPBoosted
Exhaust Shaft + Exhaust Turbine Rebuild Kit
Model: H1C / WH1C / HX35 / HX35W
Type: turbocharger
Interchange Part Number: H1C HX35 HX35W H6070A, 3519336, H6070A, Cummins 6BT / 6BTA / 4BT, H1C / WH1C / HX35 / HX35W, Turbo Turbine Exhaust Shaft Rebuild Kit
Turbo Turbine Exhaust Wheel Shaft Rebuild Kit for 3519336 H1C WH1C HX35 HX35W Ind 70mm Exd 60mm
Fitment Guide:
Engine: Cummins 6BT / 6BTA / 4BT
Turbo Model: H1C / WH1C / HX35 / HX35W
Turbine Wheel / Shaft Data
Exducer Diameter: 60.00 mm
Tip Height: 11.00 mm
Inducer Diameter: 70.00 mm
Journal Diameter: 11.00 mm
Shaft Diameter: 7.00 mm
Shaft Thread M7 LH
Number of Blades: 12
Package Contents:

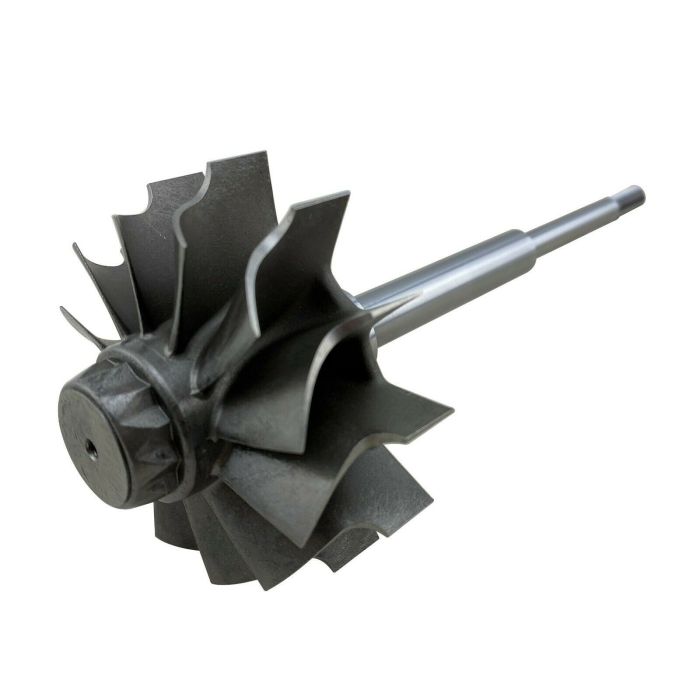

(1) Aftermarket Turbo HX35 70x60mm 12 Blade Exhaust Turbine Wheel & Shaft
Professional Installation is Highly Recommended (No Instructions Included)
Cross Reference Part Numbers:
3519336, NP-9336TS
