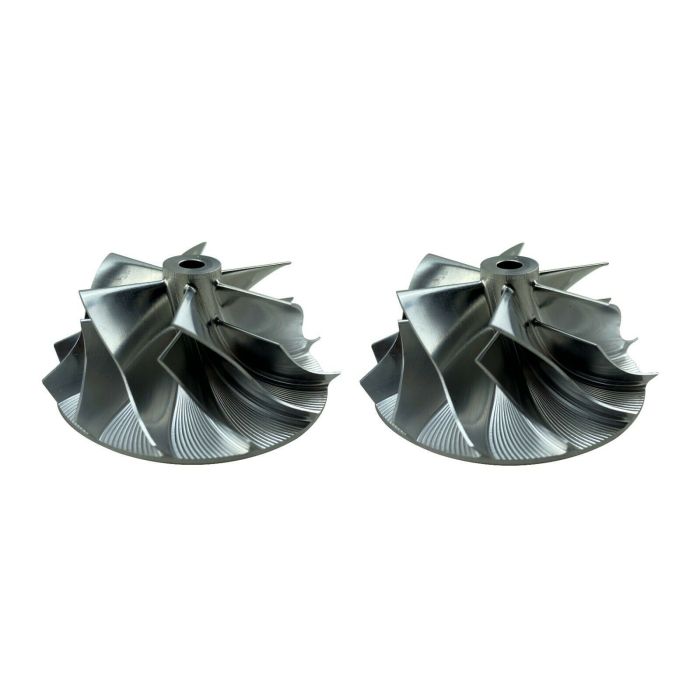

TD03 Billet Turbo Compressor Wheel Upgrade 135i 335i 335Xi 335is 535i 535Xi N54
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Brand: NPBoosted
Type:Turbo Charger Rebuild
Surface Finish:Billet Aluminum
Other Part Number:3.0, 3.0L, Twin Turbo, N54 Inline 6 Cylinder
Interchange Part Number:49131-07005, 49131-07006, 49131-07007, 49131-07008, 49131-07009, 49131-07016, 49131-07025, 49131-07026, 49131-07030, 49131-07040, 4913107005, 4913107006, 4913107007, 4913107008, 4913107009, 4913107016, 4913107025, 4913107026, 4913107030, 4913107040
TD03 Billet Turbo Compressor Wheel 6+6 Upgrade 135i 335i 335Xi 335is 535i 535Xi X5 X6 N54 Twin Turbo
Fitment Guide:
BMW 1 Series
• 2008-2010 E82 Coupe 135i N54 Twin Turbo 3.0L
• 2008-2010 E88 Convertible 135i N54 Twin Turbo 3.0L
• 2011 E82 1M Twin Turbo 3.0L
BMW 3 Series
• 2006-2010 E90 Sedan 335i/xi N54 Twin Turbo 3.0L
• 2006-2010 E91 Touring 335i/xi N54 Twin Turbo 3.0L
• 2006-2010 E92 Coupe 335i/xi N54 Twin Turbo 3.0L
• 2006-2010 E93 Convertible 335i/xi N54 Twin Turbo 3.0L
• 2011-2013 E92 Coupe 335is N54 Twin Turbo 3.0L
BMW 5 Series
• 2008-2009 E60 Sedan 535i/xi N54 Twin Turbo 3.0L
• 2008-2009 E61 Touring 535i/xi N54 Twin Turbo 3.0L
BMW Z Series
• 2009-2016 E89 BMW Z4 sDrive35i N54 Twin Turbo 3.0L
2010-2016 E89 BMW Z4 sDrive35is N54 Twin Turbo 3.0L
BMW X6
2008-2010 E71 xDrive35i Twin Turbo 3.0L
Specs:
Additional 50+ HP
10-15% Higher flow over OEM compressor wheels
20 grams lighter for faster Spooling Times
Hi FLow Billet Compressor 6+6 Wheel Spec
Blade Dimension
Blades: 6+6 (2x Forward Rotation)
Inducer: 35.6mm
Exducer: Base 46.0mm Extended Tip 49.6mm
Blade Height: 19.1mm
Bore: 4.00mm
Cross Reference Part Numbers:
NP-N54BW, 49131-07005, 49131-07006, 49131-07007, 49131-07008,
49131-07009, 49131-07016, 49131-07025, 49131-07026,49131-07030, 49131-07040
