N54 Turbo Rebuild Kit & 6+6 Billet Compressor Wheels for 135i 335i 335is 535i Xi
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Hi FLow Turbo Compressor Wheels X2 & Turbocharger Rebuild Kit X2
Model: N54 Turbo Compressor Wheel Upgrade
Other Part Number:3.0, 3.0L, Twin Turbo, N54 Inline 6 Cylinder
Interchange Part Number:49131-07005, 49131-07006, 49131-07007, 49131-07008, 49131-07009, 49131-07016, 49131-07025, 49131-07026, 49131-07030, 49131-07040, 4913107005, 4913107006, 4913107007, 4913107008, 4913107009, 4913107016, 4913107025, 4913107026, 4913107030, 4913107040, Billet Wheels + 2 Turbocharger Rebuild Kits
Attention California Customers:
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
TD03 Billet Twin Turbo Compressor Wheel 6+6 Upgrade w/ Turbocharger Rebuild Kits for BMW 135i 335i 335Xi 335is 535i 535Xi X5 X6 N54 Twin Turbo
Fitment Guide:
BMW 1 Series
• 2008-2010 E82 Coupe 135i N54 Twin Turbo 3.0L
• 2008-2010 E88 Convertible 135i N54 Twin Turbo 3.0L
• 2011 E82 1M Twin Turbo 3.0L
BMW 3 Series
• 2006-2010 E90 Sedan 335i/xi N54 Twin Turbo 3.0L
• 2006-2010 E91 Touring 335i/xi N54 Twin Turbo 3.0L
• 2006-2010 E92 Coupe 335i/xi N54 Twin Turbo 3.0L
• 2006-2010 E93 Convertible 335i/xi N54 Twin Turbo 3.0L
• 2011-2013 E92 Coupe 335is N54 Twin Turbo 3.0L
BMW 5 Series
• 2008-2009 E60 Sedan 535i/xi N54 Twin Turbo 3.0L
• 2008-2009 E61 Touring 535i/xi N54 Twin Turbo 3.0L
BMW Z Series
• 2009-2016 E89 BMW Z4 sDrive35i N54 Twin Turbo 3.0L
2010-2016 E89 BMW Z4 sDrive35is N54 Twin Turbo 3.0L
BMW X6
2008-2010 E71 xDrive35i Twin Turbo 3.0L
Specs:
Additional 50+ HP
10-15% Higher flow over OEM compressor wheels
20 grams lighter for faster Spooling Times
Hi FLow Billet Compressor 6+6 Wheel Spec

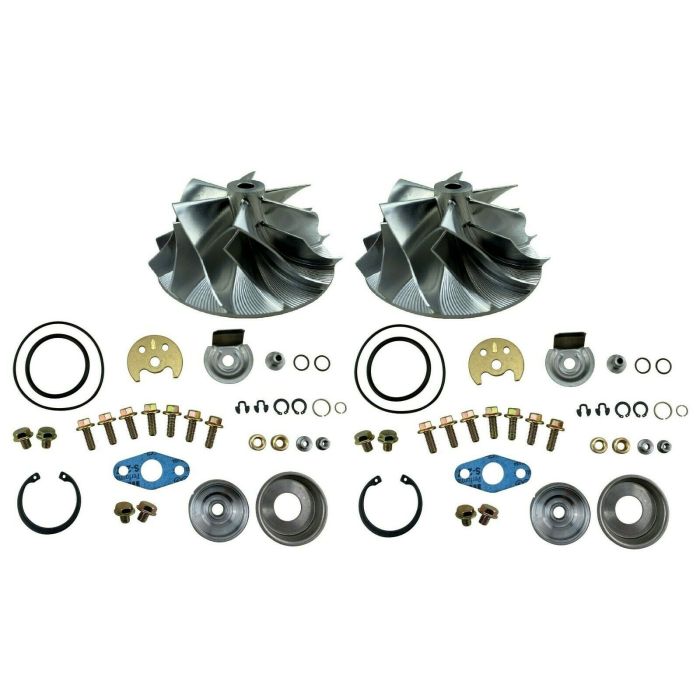

Package Contents:
Billet 6+6 Hi Flow Compressor Wheel
Thrust Collar and Spacer
Brass Thrust Bearing
Oil deflector
Compressor Housing Oring
Seal Plate Oring
Journal Bearings
Snap ring for Seal Plate
Front Seal and Rear Seal
Heat shield
Compressor nut
Spiral bearing clips
Gasket
Blade Dimension
Blades: 6+6 (2x Forward Rotation)
Inducer: 35.6mm
Exducer: Base 46.0mm Extended Tip 49.6mm
Blade Height: 19.1mm
Bore: 4.00mm
Cross Reference Part Numbers:
NP-N54BWKIT, 49131-07005, 49131-07006, 49131-07007, 49131-07008,
49131-07009, 49131-07016, 49131-07025, 49131-07026,49131-07030, 49131-07040
