6 - 62LB 650cc N54 N55 Fuel Injectors EV6 Plugs for Aftermarket Intake Manifolds
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Brand:NPBoosted
Set of 6 Performance 650CC Injectors
Interchange Part Number:FOR 12576341 1257641, 0280158051, 0280158051, 12576341, 1257641, 0 280 158 051, N54, N55, 3.0L, 3.0 Inline 6, 135i / 135is / M235i / 335i / 335is / 335Xi / 535i, 535Xi / Xdrive, AWD, RWD
6 Pc 62LB 650cc N54 N55 Fuel Injectors EV6 Plugs for Aftermarket Intake Manifolds Additional Injector Setup
Fitment Guide:
BMW N54 / N55 3.0L Inline 6
Fits Aftermarket Aluminum Intake Manifolds
on N54 Twin Turbo / N55 Single Turbo
Running Additional Injectors
Models:
135i / 135is / M235i / 335i / 335is / 335Xi / 535i / 535Xi
Fits Aftermarket Side Facing Intake Manifold
And Aftermarket Forward Facing Intake Manifold

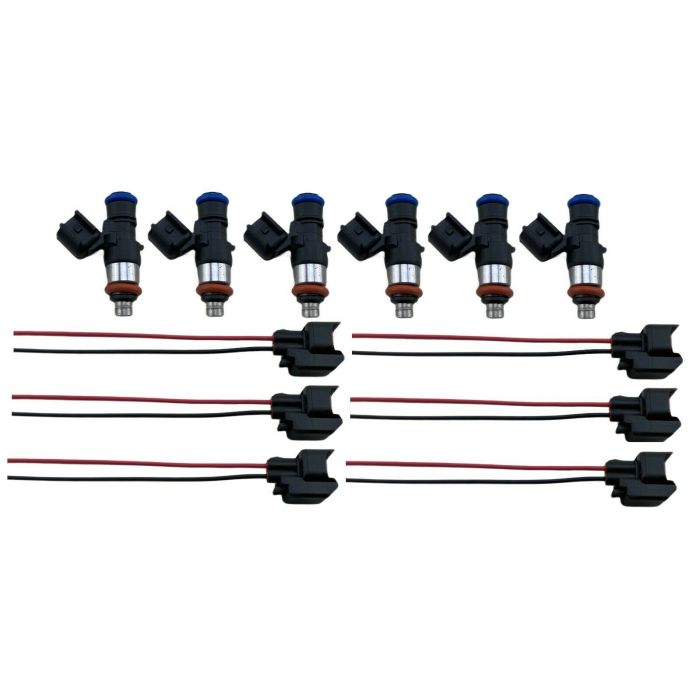

Package Contents:
(6) Aftermarket Fuel Injectors 650CC / 62 Lbs
Specs:
Flow Rate: 62 lbs/hrs @ 43.5 PSI
650 cc/min @ 43.5 PSI
12 Hole Spray
Coil Resistance: 12 Ohms
High Impedance / Saturated
Injector Design: Metal & Composite plastic
Connector Type: 2 PIN EV6
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Overall length: 50.5 mm
Body Diameter: 15 mm
O-ring to o-ring, on center: 37 mm
Upper o-ring diameter: 14.5 mm
Lower o-ring diameter: 14.5 mm
Professional Installation is Highly Recommended (No Instructions Included)
Cross Reference Part Numbers:
NP-8051FI-6, 0280158051, 12576341, 1257641, 0 280 158 051
