118Mj Inductive Dumb Ignition Coil Pack 6 Cyl for Haltech Fueltech Microtech AEM
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
41kV / 118mJ Power Output
Bundle Description:Hi Energy Output Performance Coils Packs x6
Interchange Part Number:N54, N55, 3.0L, 3.0 Turbo, 135i, 335i, 535i, 335xi, 545xi, E series, F Series, 30-2852, 302852, 601-0021, 601-0108, 8232, 1 M, 435i, M135i, M2, M235i
Attention California Customers:
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Performance 118Mj / 41kV Inductive "Dumb" Type Ignition Coil Packs 6 Cylinder Application for Haltech Fueltech Microtech AEM Fast
Fitment Guide:
Custom Hi Performance Application - 6 Cylinder
Inline 6 & V6 Engines
Turbo / Supercharged / Nitrous / High Compression
Popular Custom Coil Upgrade Choice on
N54 Twin Turbo / N55 Single Turbo BMW Engines

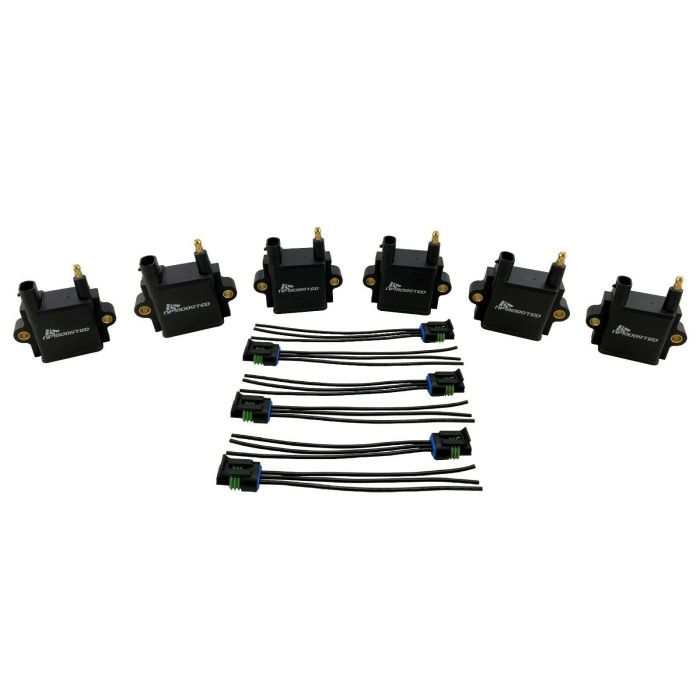

Package Contents:
(6) Hi Energy 118 mJ - 41kV Output Inductive Ignition Coil Packs
(6) Wire Harness Pigtails w/ Connector Clip Plugs
( 3 PIN ) Connector Plug
Specs:
Primary Resistance: 0.5 Ω +/- 10%
Primary Inductance: 4.8 mH +/- 15%
Secondary Resistance: 8.5 kΩ +/- 20%
Secondary Inductance: 22.5 H +/- 20%
Output (50pF load): 41 kV +/- 10%
Output Energy: 118 mJ +/- 7%
Peak Secondary Current: 100 mA +/- 7%
Arc Duration: 3.2 mS +/- 10%
Turns Ratio 71:1
Maximum Battery Voltage: 17 Volts
Base Dwell: 3.0 mS
Max Continuous Dwell: 9 mS but don't exceed 40% duty cycle
Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum
High Tension Wire Terminal: HEI "spark plug top" Style
Cross Reference Part Numbers:
NP-0227IC, 30-2852, 302852, 601-0021, 601-0108, 8232
