8 Fuel Injectors for F150 F250 F350 Mustang Crown 4.6L 5.0L 5.4L 5.8L 0280150943

More Views

8 Fuel Injectors for F150 F250 F350 Mustang Crown 4.6L 5.0L 5.4L 5.8L 0280150943

Availability: In stock

$99.95

FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95



Part Brand:NPBoosted
Type:Fuel Injectors, Wire Harness Repair Kit
Bundle Description:215cc Injectors X8 + Wire Harness Connector X8
Other Part Number:F2TE-C3A, F1ZE-C2A, F1ZE-A2B, F2TE-A3A
Interchange Part Number:822-11124, 0280150943, 0280150556, 0280150939, 0280150909, F2TEC3A, F1ZEC2A, F1ZEA2B, F2TEA3A, E5TE-A3B, E6TE-A3B, F0TE-D5B, F0TED5B, 822-11124, F1ZE-A2B, F1ZE-C2A, E6TE-A2B, 0280150556, 0280150718, 822-11111









OR
Description

Details

Set of 8  EV1 Fuel Injectors for Ford Mercury Lincoln GM Jeep 2.5L 4.0L 4.6L 5.0L 5.4L 5.8L fits 0280150943


Pluss++ Wire Harness Repair Pigtail + Connectors


Fitment Guide:
F150 - 93-03 (302, 351, 5.0, 5.8, 4.6, 5.4)
F250 -  93-03 (302, 351, 5.0, 5.8, 4.6, 5.4)
F350 -  93-03 (351, 5.8, 5.4)
96-04 Mustang - (4.6)
E350 Club Wagon - 93-02 (351, 5.8, 4.6, 5.4)
Town Car 91-93 (4.6)
1985-2002 Chevrolet Camaro
1987 Jeep Grand Wagoneer 4.0L / 2.5L
1993-2000 Jeep Grand Cherokee 4.0L / 2.5L
1987-1992 Jeep Comanche 4.0L / 2.5L
1987-1998 Jeep Cherokee 4.0L / 2.5L

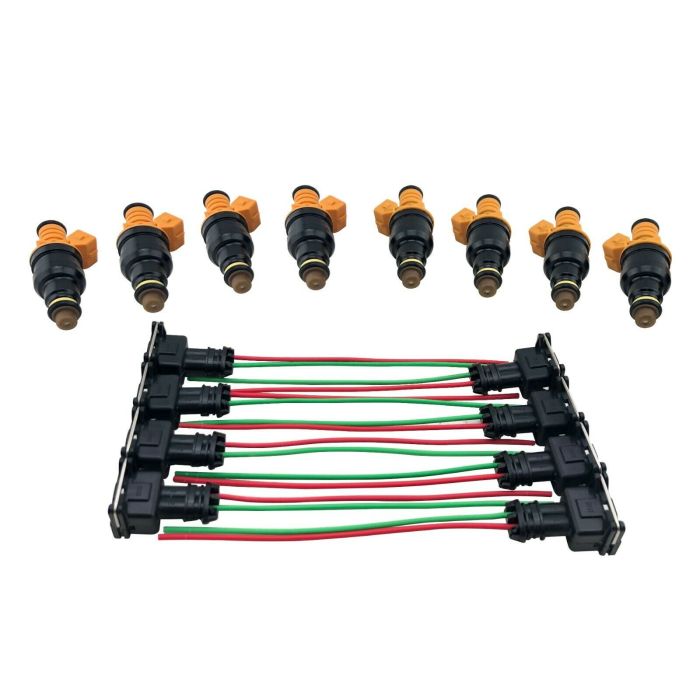

Package Contents:
8 EV1 215cc @ 43 PSI Fuel Injectors
8 Wire Harness Pigtail Connectors ( 2 Pin )


Specs:
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Connector Type: EV1 Jetronic
O-Ring: Pre-installed
Length: 3" (77mm)
Distance between O-rings: 2 1/2 inches, 63 mm
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Diameter: 16mm
O-Ring Diameter: 14.5mm
Coil Resistance: 12 Ohms / High Impedance
Static Flow Rate: 215cc /min at 43PSI / 22lb/hr
Gain: 0.12ms /MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Variance:2 %
Quantity: 8 Pcs


Cross Reference Part Numbers:

NP-INJ0943, 0280150943, 0280150939, 0280150909, F0TED5B, 0280150556, 0280150718, 822-11111, 822-11124, F1ZE-A2B, F1ZE-C2A, E6TE-A2B, F2TE-A3A, E5TE-A3B, E6TE-A3B, F0TE-D5B
