4 Pcs FUEL INJECTORS 4 Hole for 1987-98 Cherokee Wrangler Comanche Wagoneer 2.5L
FREE SHIPPING: USA & CANADA
INTERNATIONAL SHIPPING: $49.95
Brand: NPBoosted
Type:Fuel Injectors, Wire Harness Repair Kit
Other Part Number:F2TE-C3A, F1ZE-C2A, F1ZE-A2B, F2TE-A3A
Bundle Description:215cc Injectors X4 + Wire Harness Connector X4
Interchange Part Number:822-11124, 0280150943, 0280150556, 0280150939, 0280150909, F2TEC3A, F1ZEC2A, F1ZEA2B, F2TEA3A, E5TE-A3B, E6TE-A3B, F0TE-D5B, F0TED5B, 822-11124, F1ZE-A2B, F1ZE-C2A, E6TE-A2B, 0280150556, 0280150718, 822-11111, 4.6L, 5.0L, 5.4L, 5.7L, 5.8L, 4.6, 5.0, 5.4, 5.7, 5.8 V8 Injector, Injectors, Fits: Bosch Type EV1
4 Pcs 4 Hole Fuel Injectors for 1987-1998 Jeep Cherokee Wrangler Comanche Wagoneer 2.5L I4
Pluss++ Wire Harness Repair Pigtail + Connectors
Fitment Guide:
F150 - 93-03 (302, 351, 5.0, 5.8, 4.6, 5.4)
F250 - 93-03 (302, 351, 5.0, 5.8, 4.6, 5.4)
F350 - 93-03 (351, 5.8, 5.4)
96-04 Mustang - (4.6)
Expedition 97-02 (4.6, 5.4)
Excursion 00-04 (5.4)
Bronco 93-94 (5.0, 5.8, 302, 351)
Crown Victoria 92-98 (4.6)
E150 Econoline - 93-02 (302, 351, 5.0, 5.8, 4.6, 5.4)
E250 Econoline - 93-02 (351, 5.8, 4.6, 5.4)
1987 Jeep Grand Wagoneer 4.0L / 2.5L
1993-2000 Jeep Grand Cherokee 4.0L / 2.5L
1987-1992 Jeep Comanche 4.0L / 2.5L
1987-1998 Jeep Cherokee 4.0L / 2.5L

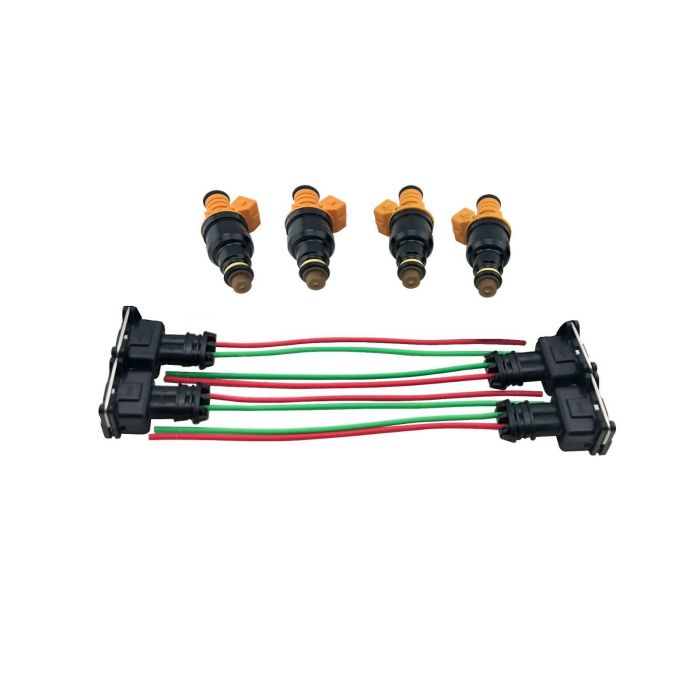

Package Contents:
4 EV1 215cc @ 43 PSI Fuel Injectors
4 Wire Harness Pigtail Connectors ( 2 Pin )
Specs:
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Connector Type: EV1 Jetronic
O-Ring: Pre-installed
Length: 3" (77mm)
Distance between O-rings: 2 1/2 inches, 63 mm
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Diameter: 16mm
O-Ring Diameter: 14.5mm
Coil Resistance: 12 Ohms / High Impedance
Static Flow Rate: 215cc /min at 43PSI / 22lb/hr
Gain: 0.12ms /MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Variance:2 %
Quantity: 4 Pcs
Cross Reference Part Numbers:
NP-INJ0943-4, 0280150943, 0280150939, 0280150909, F0TED5B, 0280150556, 0280150718, 822-11111, 822-11124, F1ZE-A2B, F1ZE-C2A, E6TE-A2B, F2TE-A3A, E5TE-A3B, E6TE-A3B, F0TE-D5B
