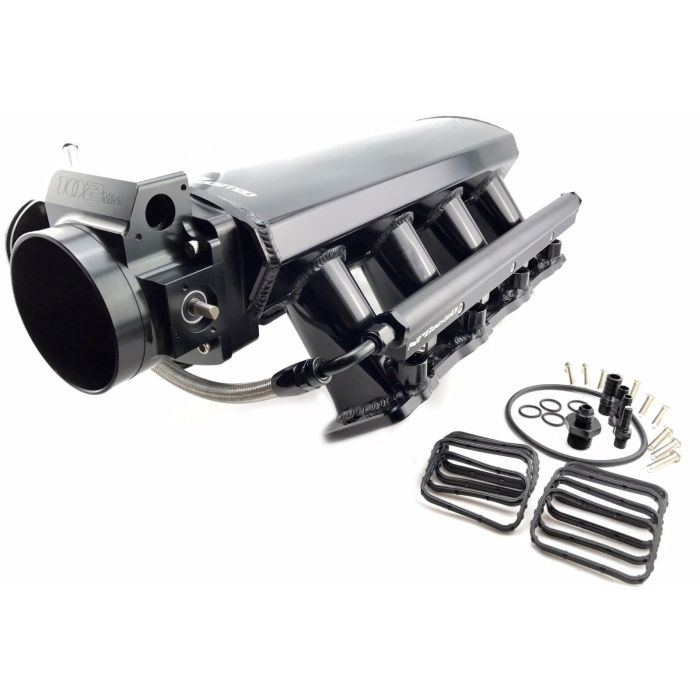

LS3 / 6.2L 6.0L 5.3L 4.8L / Tall Custom TIG Welded NPboosted Intake Manifold Kit
102mm Throttle Body & Fuel Rails w/ AN fittings

(Tig Welded Aluminum) / LS LS3 L92 Long Length 225mm Raised Port Height

(Inner Manifold Velocity Stacks)
~102mm Large Mouth Throttle Body Kit Included~
Fuel Rails Included With mounting Hardware and Steel Braided Center Connecting Fuel Line

CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)

4.8 L / 293 CI (L20, LY2)
5.3 L / 325 CI (LC9, LH6, LH8, LMG, LY5)
6.0 L / 364 CI (L76, L96, LFA, LY6)
6.2 L / 376 CI (L92, L99, LS3, LSA)

Fits:

LS based engines with "Raised Rectangle" intake port shape
Aftermarket Hoods Needed for Clearance on Most applications

Features:

Multi Port Fuel Injection type
Throttle Body Standard 4 Bolt OEM design
0 Degree Throttle Body flange Angle
3mm Plenum Thickness - Handles Forced Induction up to 35PSI
8.9" Manifold Height

Original LS3 Engine Applications:

2008–2013 Chevrolet Corvette
2010–2015 Chevrolet Camaro SS (manual only)
2008–2017 Holden Commodore family:
2009 Pontiac G8 GXP
2009–2013 Vauxhall VXR8
2008–2013 HSV GTS
2008–2015 HSV Maloo R8 and Senator Signature
2008–2016 HSV Clubsport R8
2014–2017 Chevrolet SS
2015–2017 Holden Commodore
2008–2016 Holden Caprice family:
2008–2016 HSV Grange
2015–2017 Holden Caprice-V
