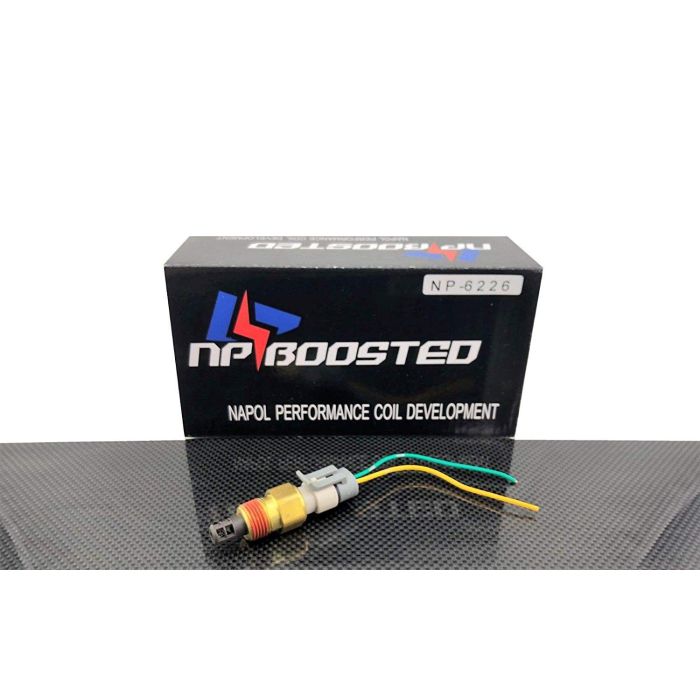

Fast Response GM Intake Air Temperature Sensor Kit IAT MAT ACT with Wire Harness

More Views

Fast Response GM Intake Air Temperature Sensor Kit IAT MAT ACT with Wire Harness

Availability: In stock

$39.95
Fast-Response Aftermarket Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor & Wire Harness Connector Kit

Features:

Aftermarket Intake Air Tempature Sensor
Cost Effective
100% Calibration Certified
Thermistor Technology
Typical Voltage Supply: 5V DC
Operating Temperature: -40 C to 135 C
Sensor Body Material: Brass
Hex Size: 18.90 mm (3/4")
Thread Size: 3/8" - 18 NPTF
Threads treated with sealing compound
Sealing Pressure: 200 kPa
Works with Most aftermarket ECU's on the market such as Haltech, Electromotive, Autronic, Bigstuff3, etc
VERY common sensor with hundreds of other applications

Cross Reference Part Numbers:

Delphi: 25037225, 25036751, 25037034, 25037334
AC Delco: 213-192, 213-190
Motec: 54001
25036751, AX3, AX1, AX1T, WT385, WT385P, 5S1007
25037225, 1H7, WT382, WT1000, TS10077, 72-4514, TS10077
12124075, 15335987, 15317832, 12191818, 15305351, 213190
TS10090, 8250367510, 54001, 31000, E115, 213192, PT307, 12162197
8250373340, 5744430, AX1, 5S1007, ATS4, 72-4514, TS5100, DR136W
TS10080, TS10080-11B1, TS10077-11B1, 213-191, 213191, 213-192

Fast & Free Shipping: USA & Canada
International Shipping: $49.95

If you have any issues or concerns with an order please contact us first, we will make sure to find a solution!
OR
Description

Details

Fast Response GM Intake Air Temperature Sensor Kit IAT MAT ACT with Wire Harness

Fits the following vehicles:


  • 1993 Buick Riviera Luxury 3.8L V6 Gas
  • 1994-1995 Cadillac DeVille Base 4.9L V8 Gas
  • 1993 Cadillac Eldorado Base 4.9L V8 Gas
  • 2006-2009 Cadillac STS V 4.4L V8 Gas
  • 2006-2009 Cadillac STS Base 4.6L V8 Gas
  • 2006-2009 Cadillac STS Base 3.6L V6 Gas
  • 1993 Cadillac Seville Base 4.9L V8 Gas
  • 2006-2009 Cadillac XLR V 4.4L V8 Gas
  • 2006-2009 Cadillac XLR Platinum 4.6L V8 Gas
  • 1993-1995 Chevrolet Corvette ZR-1 5.7L V8 Gas
  • 1993 Chevrolet S10 EL 2.5L L4 Gas
  • 1993 Chevrolet S10 EL 2.8L V6 Gas
  • 1993 Chevrolet S10 Base 4.3L V6 Gas
  • 1993 GMC Jimmy Base 4.3L V6 Gas
  • 1993 GMC Jimmy SLE SLS SLT 4.3L V6 Gas
  • 1993 GMC Sonoma Base 2.5L L4 Gas
  • 1993 GMC Sonoma Base 2.8L V6 Gas
  • 1993 GMC Sonoma Base 4.3L V6 Gas
  • 1993 GMC Sonoma SLE 4.3L V6 Gas
  • 1986-1992 Buick Century
  • 1986-1990 Buick Electra
  • 1986-1991 Buick Lesabre
  • 1988-1991 Buick Reatta
  • 1988-1993 Buick Riviera
  • 1985-1989 Buick Skyhawk
  • 1985-1991 Buick Skylark
  • 1986-1987 Buick Somerset
  • 1985-1986 Buick Somerset Regal
  • 1993-1994 Cadillac 60 Special
  • 1987-1992 Cadillac Allante
  • 1985-1986 Cadillac Cimarron
  • 1985-1993 Cadillac Commercial Chassis
  • 1985-1995 Cadillac Deville
  • 1985-1993 Cadillac Eldorado
  • 1985-1992 Cadillac Fleetwood
  • 1985-1993 Cadillac Seville
  • 2006-2009 Cadillac STS
  • 2006-2009 Cadillac XLR
  • 1987-1990 Chevrolet Astro
  • 1987-1990 Chevrolet Beretta
  • 1985-1992 Chevrolet Camaro
  • 1985-1989 Chevrolet Cavalier
  • 1987-1990 Chevrolet Celebrity
  • 1985-1986 Chevrolet Citation II
  • 1987-1989 Chevrolet Corsica
  • 1985-1995 Chevrolet Corvette
  • 1990-1992 Chevrolet Lumina
  • 1987-1993 Chevrolet S10
  • 1987-1988 Chevrolet S10 Blazer
  • 1987-1988 Chevrolet Spectrum
  • 1987-1990 GMC S15
  • 1987-1988 GMC S15 Jimmy
  • 1987-1990 GMC SAFARI
  • 1991-1993 GMC Sonoma
  • 1991-1992 GMC Syclone
  • 1992-1993 GMC Typhoon
  • 1986-1990 Oldsmobile 98
  • 1985-1987 Oldsmobile Calais
  • 1988-1991 Oldsmobile Cutlass Calais
  • 1986-1992 Oldsmobile Cutlass Ciera
  • 1987-1990 Oldsmobile Cutlass Cruiser
  • 1990-1991 Oldsmobile Cutlass Supreme
  • 1986-1991 Oldsmobile Delta 88
  • 1985-1988 Oldsmobile Firenza
  • 1986-1992 Oldsmobile Toronado
  • 1985-1991 Pontiac 6000
  • 1987-1991 Pontiac Bonneville
  • 1985-1988 Pontiac Fiero
  • 1985-1992 Pontiac Firebird
  • 1985-1991 Pontiac Grand Am
  • 1989-1991 Pontiac Grand Prix
  • 1985-1986 Pontiac J2000 Sunbird
  • 1989-1990 Pontiac Lemans
  • 1986-1990 Pontiac Sunbird
